Stretch Ceiling Profiles

These are the aluminum profiles our own crews install every day, in South Florida and across the country. Open any card for the cross-section drawing and an installed view. CAD files (DWG, Revit, PDF) are shared on request: click any file button and tell us about your project.

Technical files are available to design and construction professionals on request. We approve most requests within one business day.Ask our team

Standard

AP-101-B

Wall Shadow Profile

Our go-to profile when a client wants the ceiling to look like it floats. It forms a crisp shadow gap along the wall and hides every fastener, so the edge stays clean year after year.

1-3/4″ x 1/4″Wall · Black · 6.5 ft

Standard

AP-102

Wall Profile D

A perimeter workhorse we fit on straight and curved walls alike. The decorative insert closes the edge completely, leaving a tailored line with no visible gap.

1-1/4″ x 1/2″Wall · Raw Aluminum · 6.5 ft

Standard

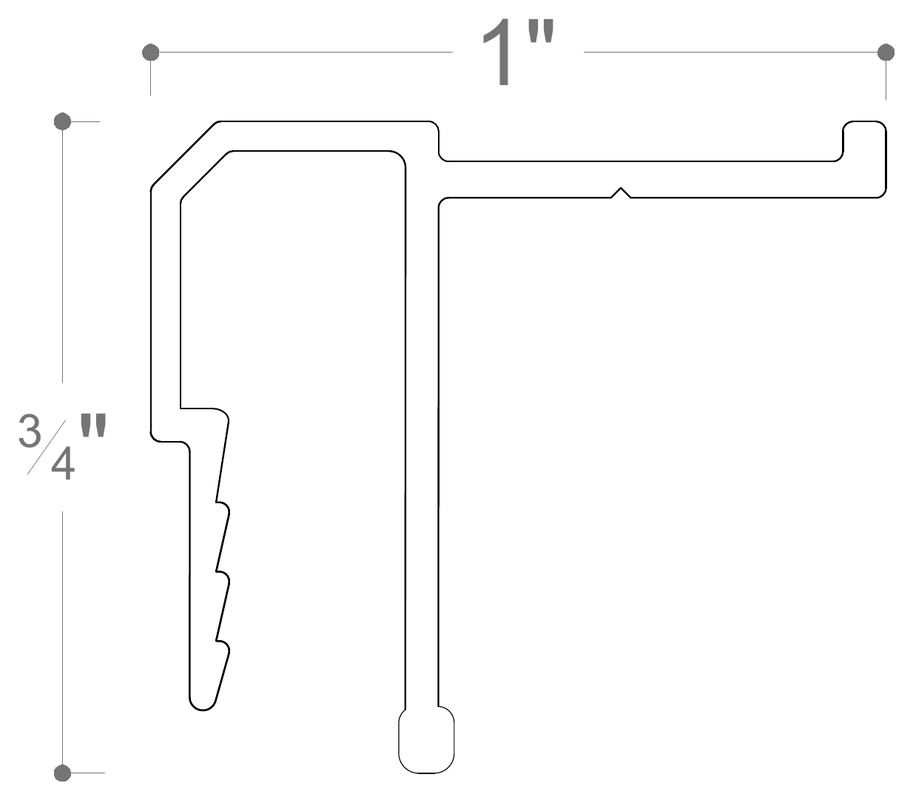

AP-106

Ceiling Profile D

For rooms where the walls cannot be touched, we mount this one directly to the ceiling slab. The insert channel still gives the perimeter a fully finished look.

3/4″ x 1″Ceiling (Top-Mount) · Raw Aluminum · 6.5 ft

Standard

AP-105 / AP-205-W

Ceiling Profile Open Edge

When the design calls for no visible trim at all, this open-edge profile lets the membrane meet the wall in one smooth, borderless transition.

3/4″ x 1″Ceiling (Top-Mount) · Raw Aluminum / White · 6.5 ft

Standard

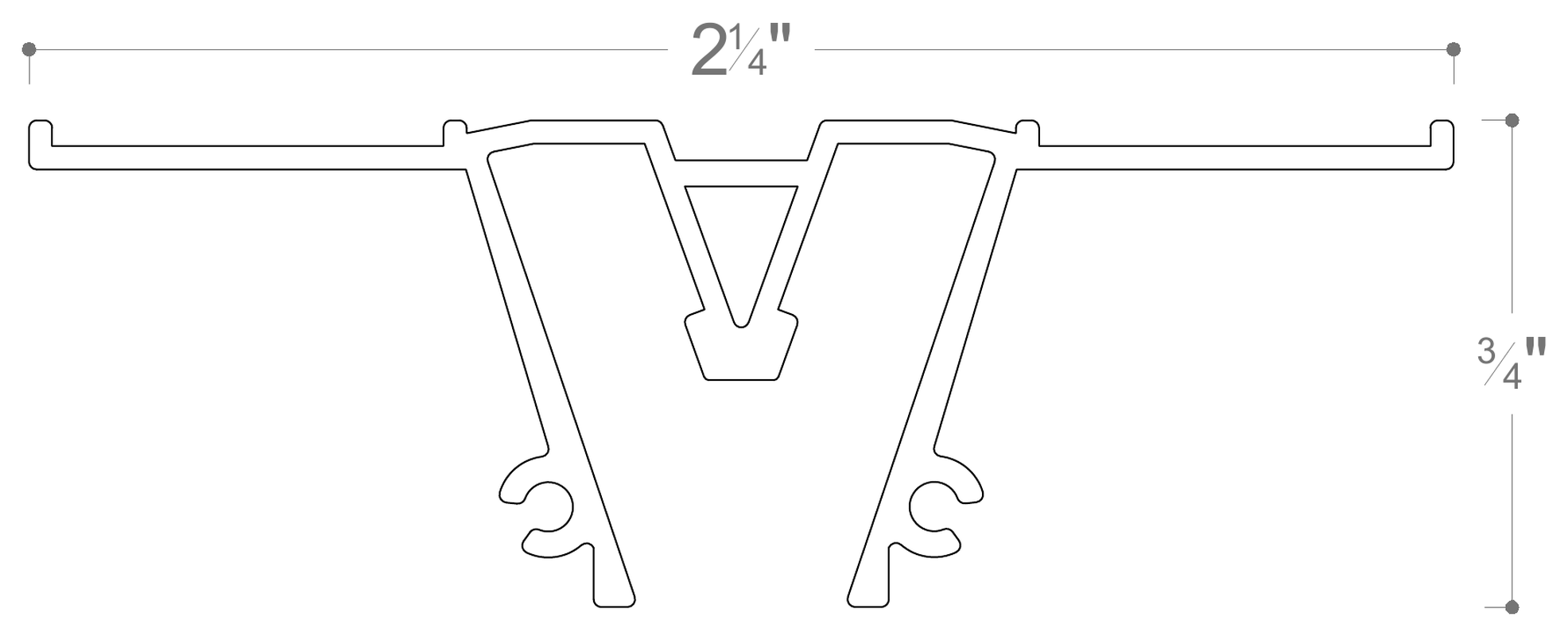

AP-107

Separator Profile

The connector we use on very large ceilings and two-color layouts. It joins two membrane panels in a perfectly straight seam.

2-1/4″ x 3/4″Wall · Raw Aluminum · 6.5 ft

Standard

AP-108-W

Double Profile D

Two channels in one body. We use it to step the ceiling between levels or float a separate element, which opens the door to 3D layouts.

3-1/4″ x 1/4″Wall · White · 6.5 ft

Structure

AP-202 / AP-202-W

Structure Profile A

The backbone of our shaped ceilings. This framing profile builds the rigid skeleton that complex curves and custom geometry stretch over.

1″ x 1-1/4″Ceiling (L-Brackets) · White / Raw Aluminum · 6.5 ft

Structure

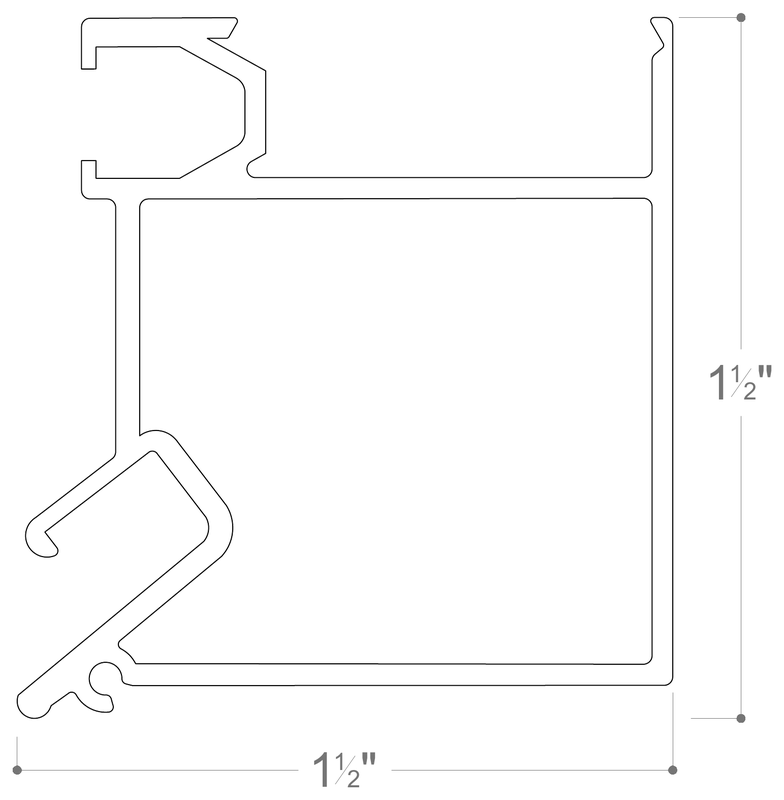

AP-203

Tray Ceiling Profile

Builds the recessed tray that gives a flat room real architectural depth. A favorite of ours for living rooms and primary bedrooms.

1-1/2″ x 1-1/2″Ceiling (L-Brackets) · Raw Aluminum · 6.5 ft

Structure

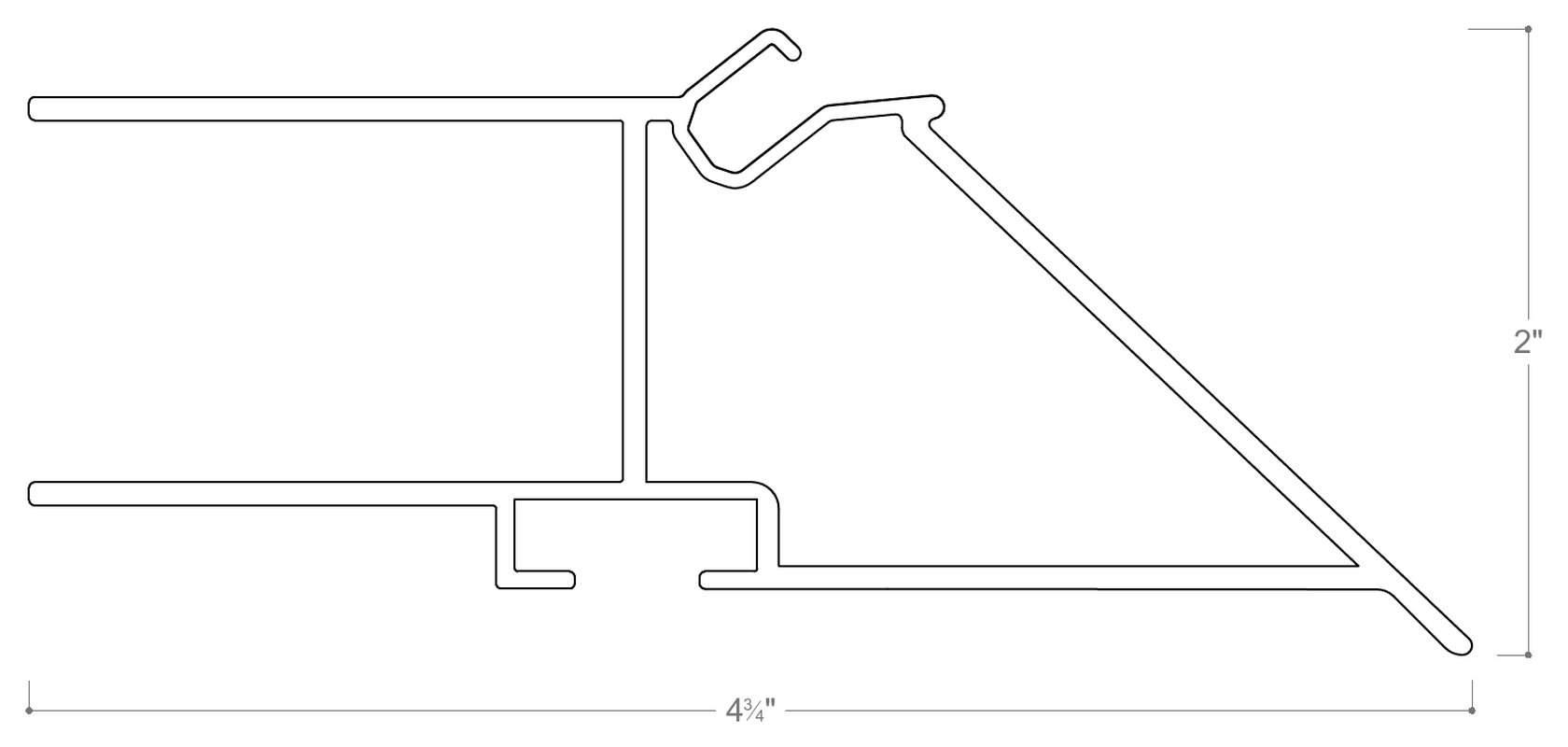

AP-205

Acoustic Profile

Made for micro-perforated acoustic membranes. The room keeps its clean ceiling plane while footstep noise and echo get absorbed above it.

4-3/4″ x 2″Ceiling (L-Brackets) · Raw Aluminum · 6.5 ft

Structure

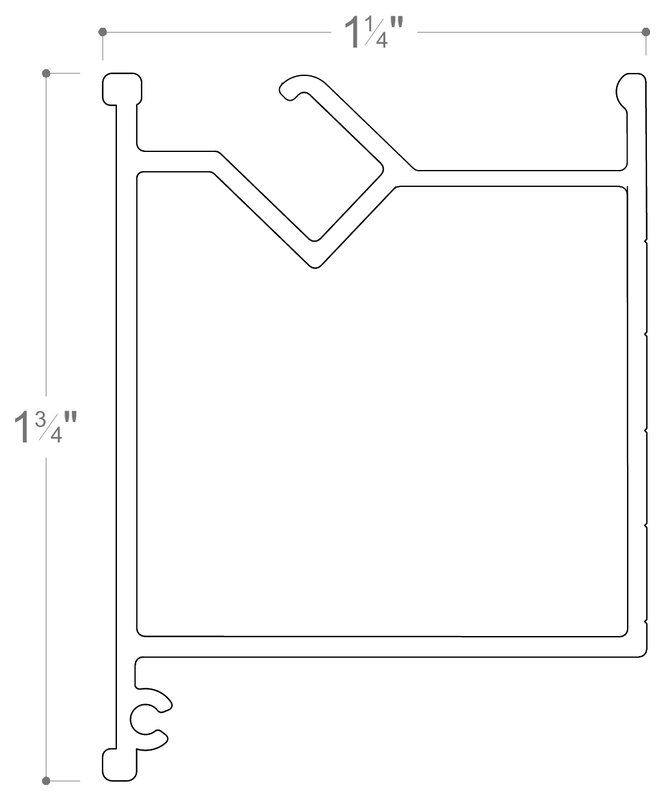

AP-216

Floating Shapes Profile

Circles, waves, and free-form islands start with this profile. We bend it to the shape on the drawing, then float the finished element below the ceiling.

1-1/4″ x 1-3/4″Ceiling (Suspended) · Raw Aluminum · 6.5 ft

Structure

AP-206-W

Armstrong Integration

Drops a stretch ceiling straight into an existing Armstrong grid, so commercial spaces can upgrade without tearing the old system out.

3/4″ x 2-9/16″Ceiling (Suspended) · White · 6.5 ft

Structure

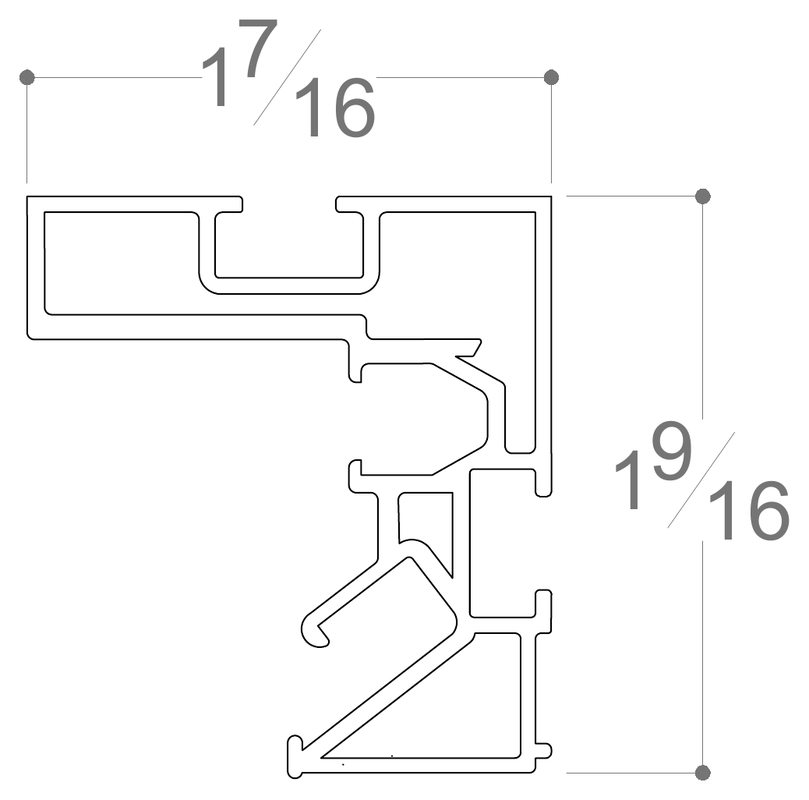

AP-209-W

Framing Opening Profile

Frames clean openings for downlights, vents, and access hatches. Every cut-out gets a finished edge instead of a raw one.

1-7/16″ x 1-9/16″Ceiling (L-Brackets) · White · 6.5 ft

Structure

AP-212

Luminous Form (Small)

The compact backlit profile we reach for on smaller luminous accents, niches, and slim light features.

4-3/4″ x 1-7/8″Ceiling (Suspended) · White / Custom · 6.5 ft

Structure

AP-213

Luminous Form (Large)

Our large-format luminous profile. It spreads even, diffused light across wide stretches of translucent membrane with no hot spots.

7-7/8″ x 1-7/8″Ceiling (Suspended) · White / Custom · 6.5 ft

Structure

AP-211-W

Edge Definition Profile

Where two planes meet at a sharp angle, this profile keeps the edge knife-crisp. We use it to define perimeters that need to read as a precise line.

2-1/2″ x 13/16″Ceiling or Wall Edge · Raw Aluminum · 6.5 ft

Lighting

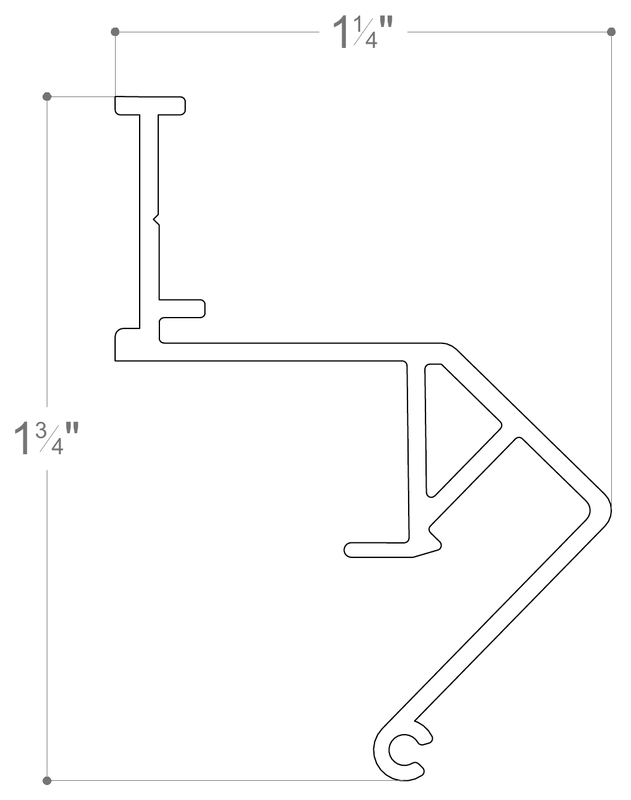

AP-301-W

Cove Light – Wall Perimeter

The wall-mounted cove profile behind most of our perimeter glow installs. It washes soft, indirect light up around the whole room.

1-3/4″ x 1-1/4″Wall – Perimeter · White · 6.5 ft

Lighting

AP-302-W

Cove Light – Ceiling Top

Top-mounted cove channel that hides the LED strip completely. All you see is the halo of light along the ceiling edge.

2″ x 1-1/4″Ceiling (Top-Mount) · White · 6.5 ft

Lighting

AP-303-W

Cove Light – Wall Perimeter D

The deep-channel version of our wall cove. More room inside means a wider throw of light and a stronger perimeter glow.

2″ x 1″Wall – Perimeter · White · 6.5 ft

Lighting

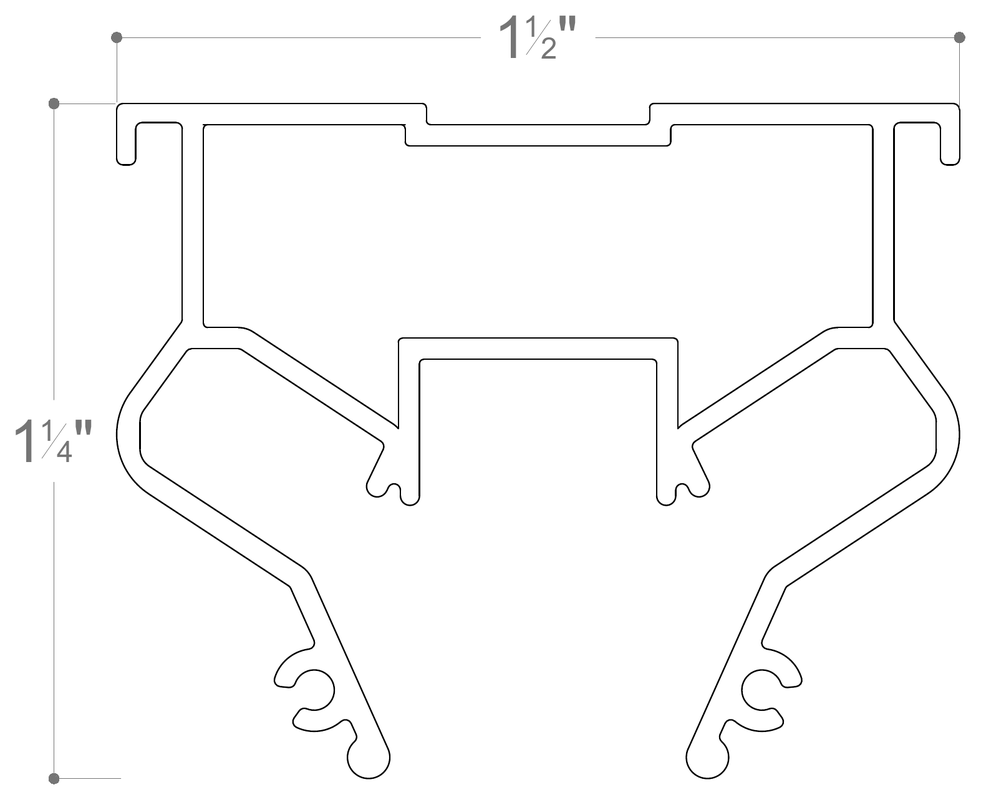

AP-305

Linear Light Mini

Cuts slim recessed light lines straight into the ceiling plane. This is the profile behind the linear lighting our clients ask for most.

1-1/2″ x 1-1/4″Ceiling (Recessed) · Raw Aluminum · 6.5 ft

Lighting

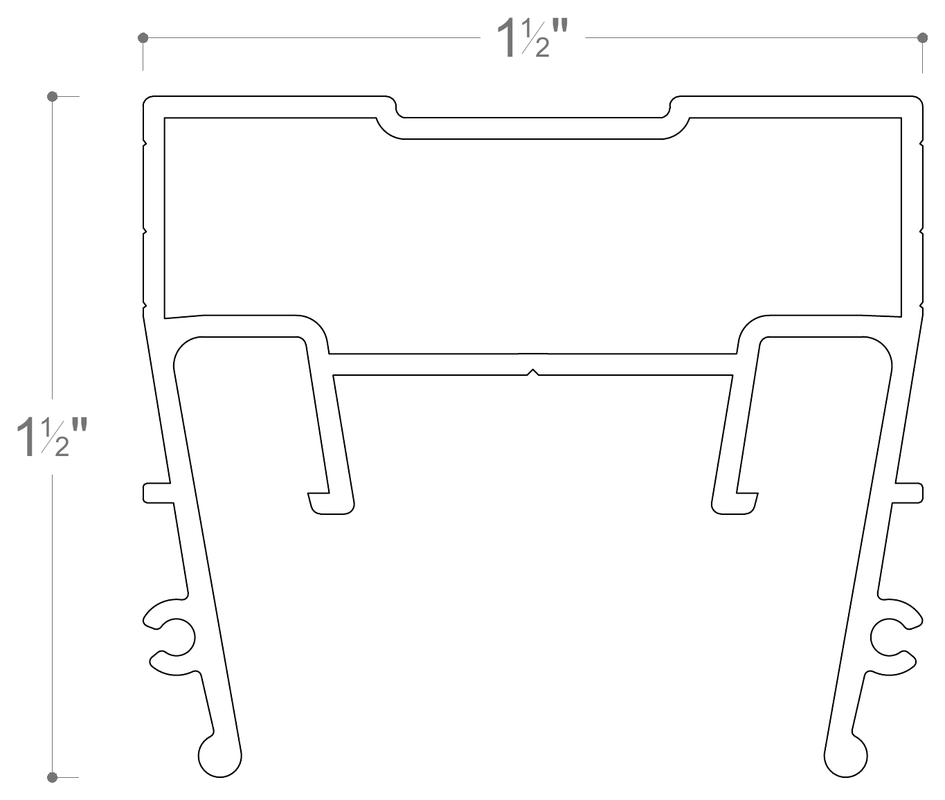

AP-306

Linear Light Midi

The wider channel of the linear family. It carries two LED strips for broader light distribution across bigger rooms.

1-1/2″ x 2-1/4″Ceiling (Recessed) · Raw Aluminum · 6.5 ft

Lighting

AP-307

Linear Light Maxi

Our highest-output linear profile, with heat-sink fins machined into the body and twin hooks that grip the membrane on both sides.

2-1/4″ x 1-1/2″Ceiling (Recessed) · Raw Aluminum · 6.5 ft
